Odin + Raylib Examples
A growing gallery of experiments, demos, and engine‑building notes.

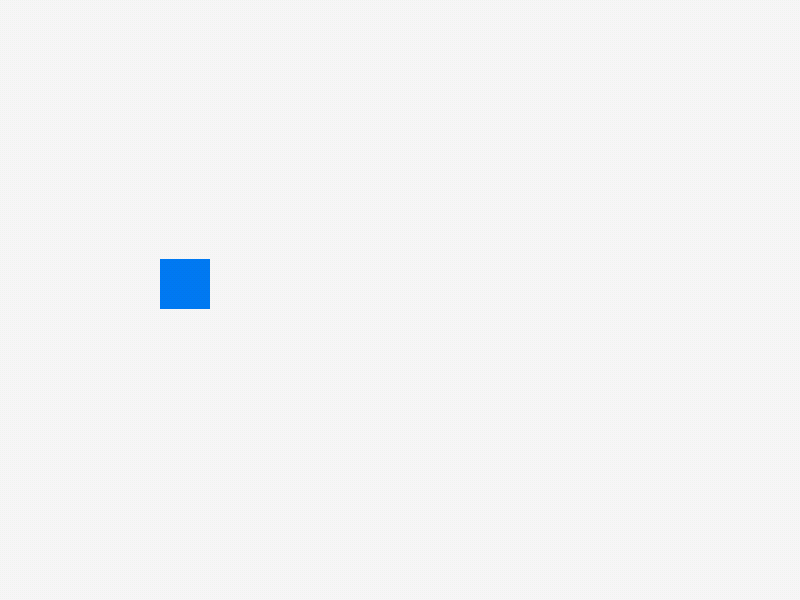

package main
import rl "vendor:raylib"
xpos: i32 = 0 // this is your bucket of nails!
ypos: i32 = 100
rw : i32 = 50
rh : i32 = 50
main :: proc() {
rl.InitWindow(800, 600, "TITLE")
rl.SetTargetFPS(60)
for !rl.WindowShouldClose() {
rl.BeginDrawing()
rl.ClearBackground(rl.RAYWHITE)
xpos += 1 // this is your hammer!
rl.DrawRectangle(xpos, ypos, rw, rh, rl.BLUE) // this is your handcrafted furniture!
if xpos >= 300 {
xpos = 300
}
ypos += 1
rl.EndDrawing()
}
rl.CloseWindow()
}
// any questions?
// before you do anything with raylib ask yourself can a variable and a procedure solve
//the problem. Do not reach for a struct or an array or use a loop. You are already working
//inside of a loop. You will just hurt yourself nesting loops, trust me, I learned the hard way.
//Everything you need is already there. All you are doing is transforming variables.
//All of it, its all you should be doing. You will know when it's time to reach for mememory,
//or an array, or a struct because procs, variables, and if/else can't easily solve the problem.
//With 2d games you will be hard pressed to ever ever ever need to break that model.
//Friends don't let friends do ECS or OOP, ok? I wan't you to succeed.

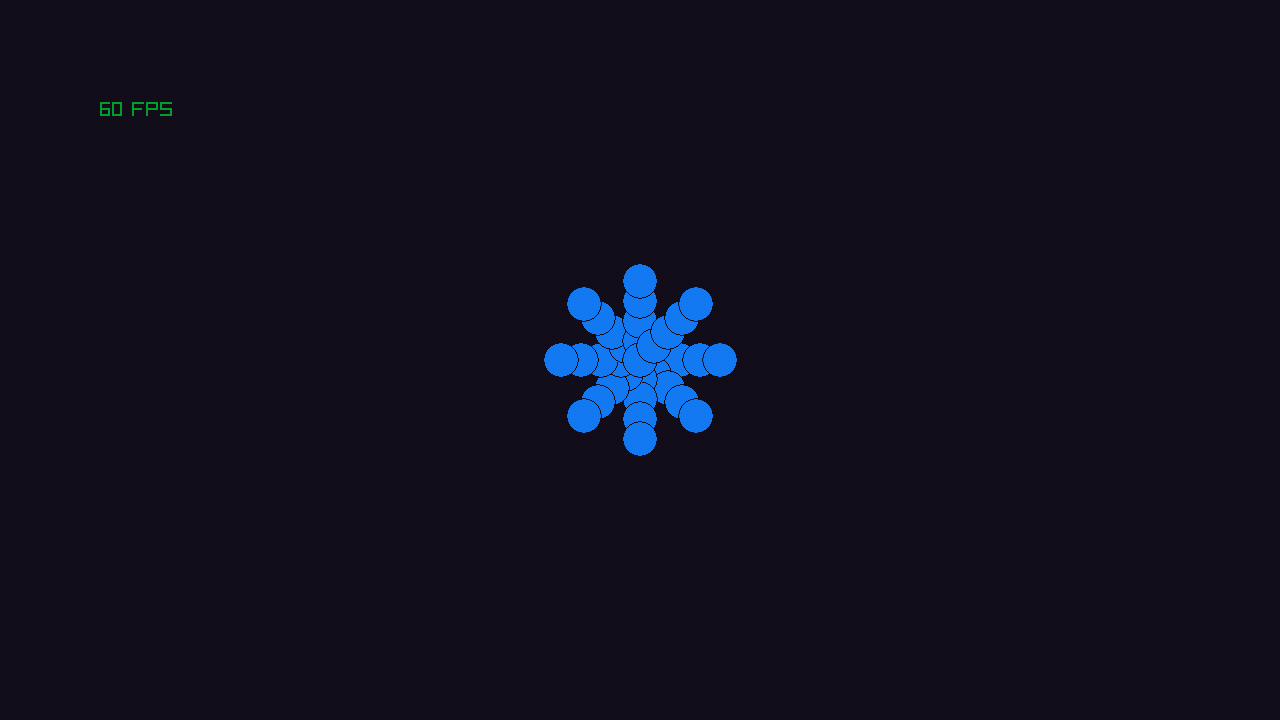

package main
import math "core:math"
import rl "vendor:raylib"
sw :: 1280
sh :: 720
title :: "Project Dreadwitch"
origin_x :: sw/2
origin_y :: sh/2
rad :: 0.0
pi :: 3.14
origin_t :: 0.0
t : f32 = origin_t
petal :: proc(angle: f32) {
for i := 0; i < 5; i += 1 {
dist := f32(i) * 20.0
// breathing radius
r := 20.0 + math.sin(t) * 3.0
x := origin_x + cast(i32)(math.cos(angle) * dist)
y := origin_y + cast(i32)(math.sin(angle) * dist)
rl.DrawCircle(x, y, r, rl.BLUE)
rl.DrawCircleLines(x, y, r, rl.BLACK)
}
}
main :: proc() {
rl.SetTargetFPS(60)
rl.InitWindow(sw, sh, title)
for !rl.WindowShouldClose() {
t += 0.05
rl.BeginDrawing()
rl.ClearBackground(rl.BLACK)
for k := 0; k < 8; k += 1 {
angle := f32(k) * pi / 4.0 // 8 petals, 45° apart
petal(angle)
}
rl.DrawRectangle(0, 0, sw, sh, rl.Fade(rl.PURPLE, 0.1))
rl.DrawFPS(100, 100)
rl.EndDrawing()
}
rl.CloseWindow()
}

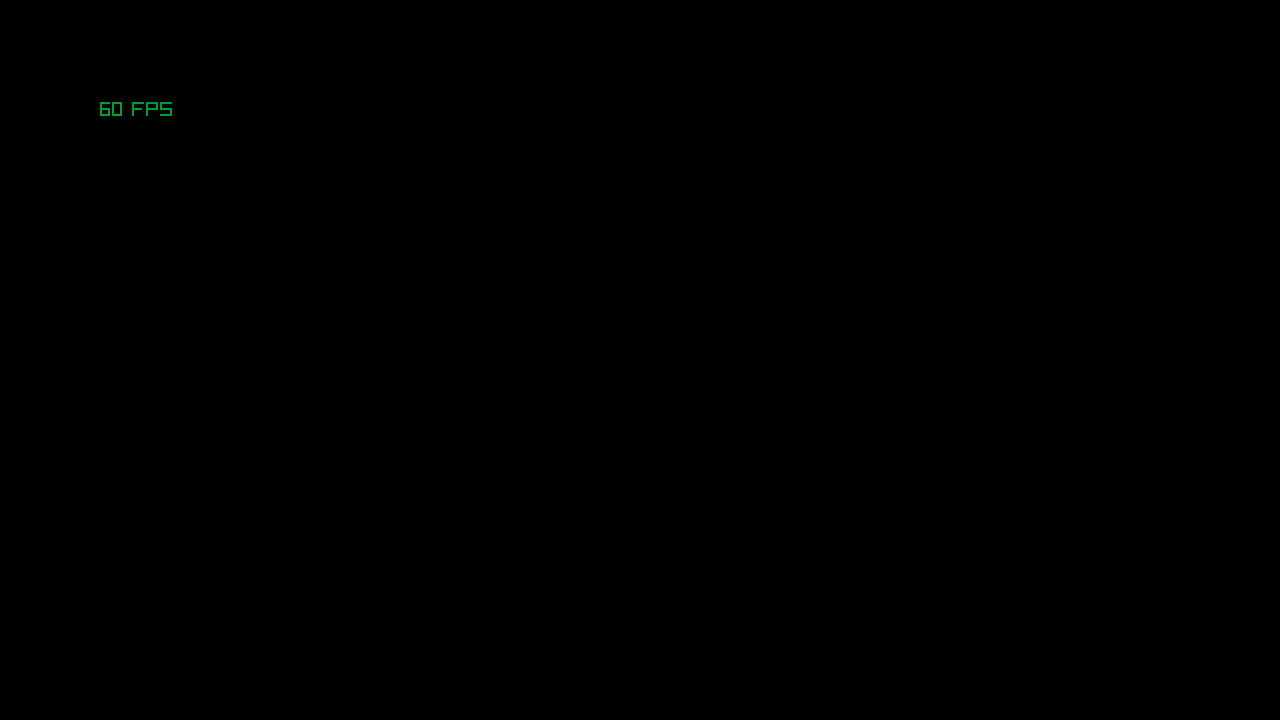

// press "one" to experience take damage screen effect
package main
import math "core:math"
import rl "vendor:raylib"
sw :: 1280
sh :: 720
title :: "Project Dreadwitch"
origin_x :: sw/2
origin_y :: sh/2
blue :: rl.BLUE
red :: rl.RED
green :: rl.GREEN
purple :: rl.PURPLE
yellow :: rl.YELLOW
color_array := [5]rl.Color{
blue,
red,
green,
purple,
yellow,
}
damage_timer : f32 = 0
take_damage :: proc(amount: int = 1) {
damage_timer = 0.5 // half-second flash
}
main :: proc() {
rl.SetTargetFPS(60)
rl.InitWindow(sw, sh, title)
counter : int = 0
for !rl.WindowShouldClose() {
rl.BeginDrawing()
rl.ClearBackground(rl.BLACK)
if damage_timer > 0 {
damage_timer -= rl.GetFrameTime()
idx := cast(int)(rl.GetTime() * 10) % len(color_array)
alpha := damage_timer / 0.5 // fade out
rl.DrawRectangle(0, 0, sw, sh, rl.Fade(color_array[idx], 0.2))
}
if rl.IsKeyReleased(.ONE) {
take_damage()
}
rl.DrawFPS(100, 100)
rl.EndDrawing()
}
rl.CloseWindow()
}

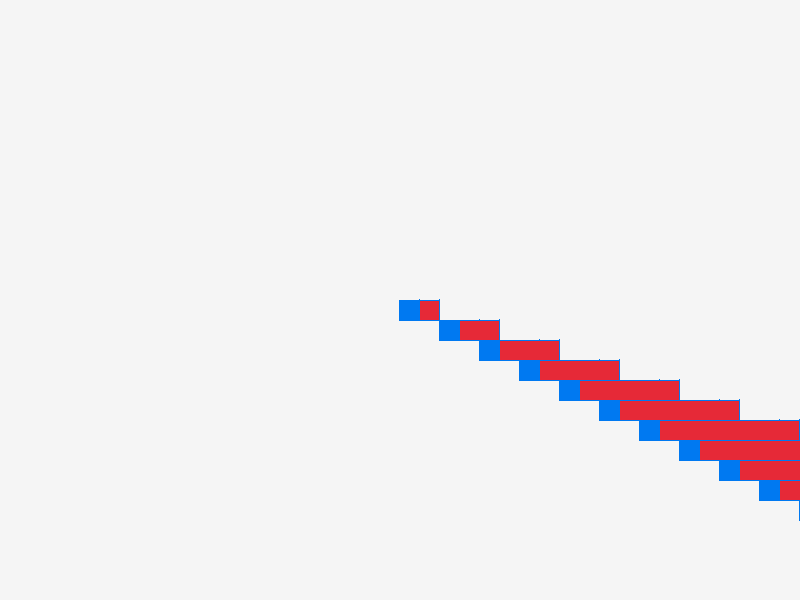

package main
import rl "vendor:raylib"
sw:i32 = 800
sh:i32 = 600
draw_square :: proc() {
x: i32 = sw/2
y: i32 = sh/2
w: i32 = 0
h: i32 = 0
offset: i32 = 20
for i := 0; i < 20; i +=1 {
rl.DrawRectangle(x, y, w+offset, h+offset, rl.BLUE)
rl.DrawRectangleLines(x, y, w+offset, h+offset, rl.BLUE)
x += offset
rl.DrawRectangle(x, y, w+offset, h+offset, rl.RED)
rl.DrawRectangleLines(x, y, w+offset, h+offset, rl.BLUE)
y += offset
x += offset
w += offset
}
}
main :: proc() {
rl.InitWindow(sw, sh, "Project Dreadwitch")
for !rl.WindowShouldClose(){
rl.BeginDrawing()
rl.ClearBackground(rl.RAYWHITE)
draw_square()
rl.EndDrawing()
if rl.IsKeyPressed(.ONE){
rl.TakeScreenshot("stairs_example.png")
}
}
rl.CloseWindow()
}

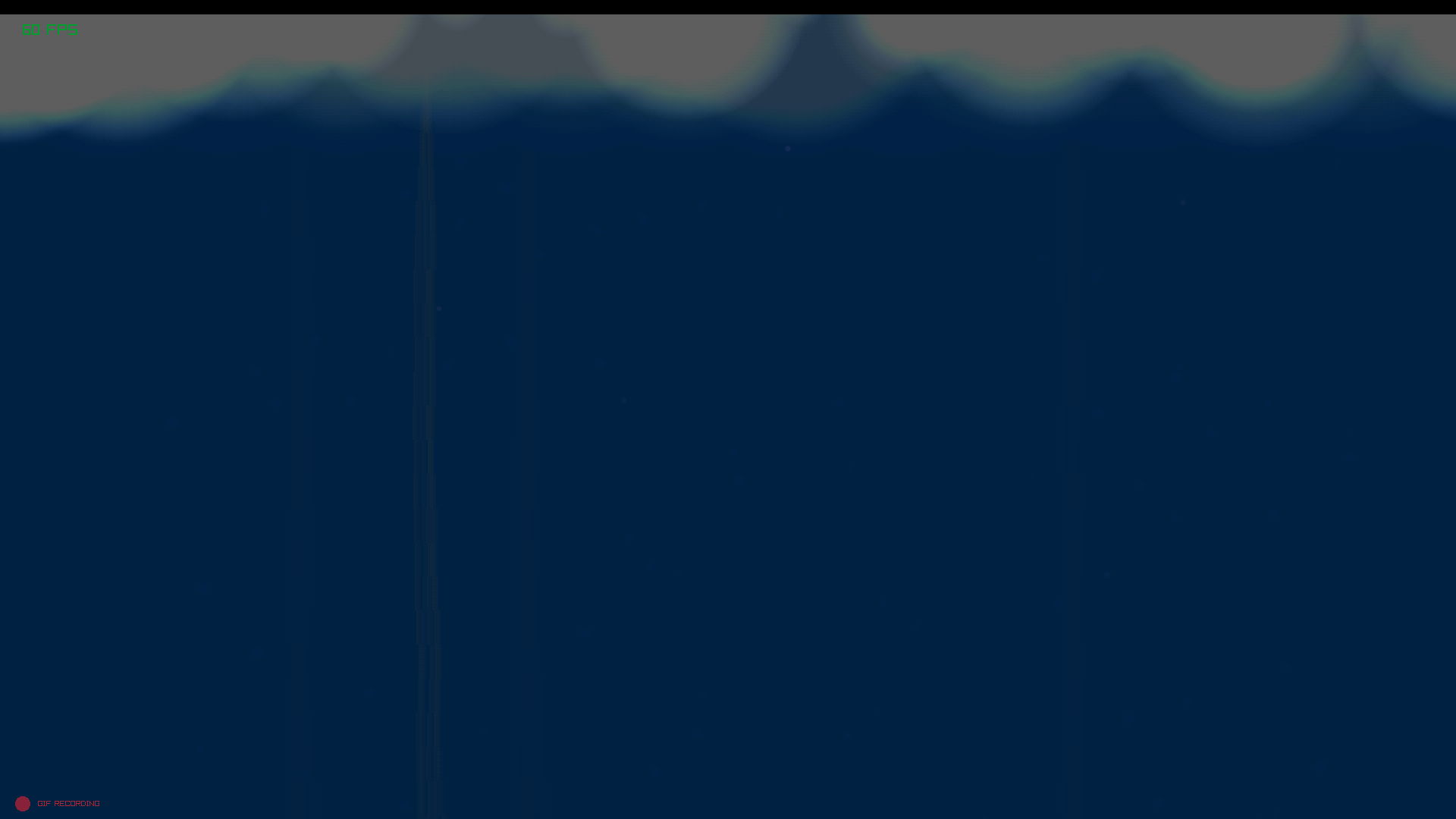

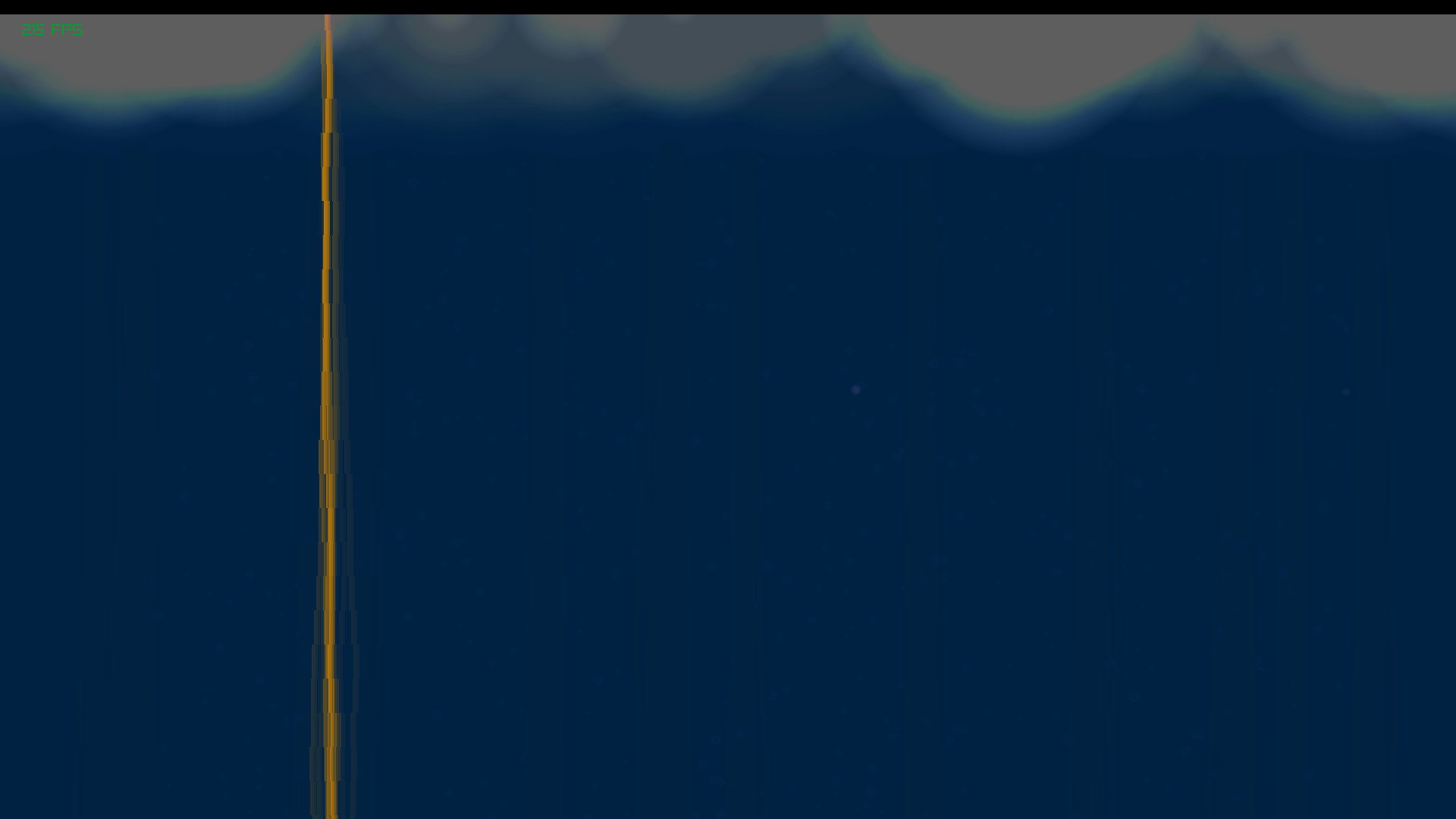

package main
import rl "vendor:raylib"
import "core:math"
MyRect :: struct {
id: string,
rect: rl.Rectangle,
color: rl.Color,
}
Player :: struct {
body: rl.Rectangle,
color: rl.Color,
view_radius: f32,
}
//player_controller :: proc(p: ^Player, sw, sh: f32) {
// dt := rl.GetFrameTime()
// speed : f32 = 250.0
// if rl.IsKeyDown(.A) { p.body.x -= speed * dt }
// if rl.IsKeyDown(.D) { p.body.x += speed * dt }
// if rl.IsKeyDown(.W) { p.body.y -= speed * dt }
// if rl.IsKeyDown(.S) { p.body.y += speed * dt }
// p.body.x = math.clamp(p.body.x, 0, sw - p.body.width)
// p.body.y = math.clamp(p.body.y, 0, sh - p.body.height)
//}
draw_bolt :: proc(x_pos: f32, life: f32) {
if life <= 0 do return
segment_height : f32 = 40.0
current_y : f32 = -50.0
current_x := x_pos
// Loop until we are past the bottom of the screen
for current_y < 1080 {
// Horizontal jitter for THIS specific segment
// This creates the "jagged" look
jitter := f32(rl.GetRandomValue(-1, 1))
current_x += jitter
// Layer the rectangles for "pulpiness"
for i in 0..<3 {
current_color := rl.Fade(rl.ORANGE, life * 0.85)
rect := rl.Rectangle{
current_x + jitter,
current_y,
2.0 + f32(i * 3),
segment_height + 5.0, // Slight overlap to prevent gaps
}
rl.DrawRectangleRec(rect, current_color)
}
// Move down for the next segment
current_y += segment_height + 5
// Optional: uncomment the next line to make the bolt "drift" as it goes down
current_x += jitter
current_x += jitter
}
}
main :: proc() {
//rl.SetTargetFPS(60)
sw, sh: i32 = 1920, 1080
rl.InitWindow(sw, sh, "Odin - Circular Vision")
defer rl.CloseWindow()
atmosphere := MyRect{
id = "Atmosphere",
rect = { 0, 0, f32(sw), f32(sh) },
color = rl.Fade(rl.BLUE, 0.1),
}
player := Player{
body = { f32(sw) * 0.5, f32(sh) * 0.5, 40, 40 },
color = rl.GOLD,
view_radius = 20.0,
}
large_chaos_strobe :: proc(p: Player) {
cX := p.body.x + (p.body.width / 2)
cY := p.body.y + (p.body.height / 2)
origin := rl.Vector2{
cX + f32(rl.GetRandomValue(-800, 800)),
cY + f32(rl.GetRandomValue(-800, 800)),
}
num_layers := rl.GetRandomValue(1, 5)
for i: i32 = 0; i < num_layers; i += 1 {
radius := (3) + f32(i)
rl.DrawCircleV(origin, radius, rl.Fade(rl.PURPLE, 0.08))
}
}
small_chaos_strobe :: proc(pos: rl.Vector2) {
// Use the passed-in pos instead of hardcoding 0.0
origin := rl.Vector2{
pos.x + f32(rl.GetRandomValue(-10.0, 10.0)),
pos.y + f32(rl.GetRandomValue(-10.0, 10.0)),
}
num_layers := rl.GetRandomValue(1, 200)
for i: i32 = 0; i < num_layers; i += 1 {
radius := (1.0) + f32(i)
rl.DrawCircleV(origin, radius, rl.Fade(rl.RAYWHITE, 0.005))
}
}
chaos_strip :: proc() {
cX: f32 = 0.0
for i := 0; i < 20; i += 1 {
small_chaos_strobe(rl.Vector2{cX, 0.0})
cX += 150.0
}
}
bolt_x: f32 = 0.0
bolt_life: f32 = 0.0
frame_counter := 0
for !rl.WindowShouldClose() {
//player_controller(&player, f32(sw), f32(sh))
frame_counter += 1
if frame_counter >= 100{
rl.ClearBackground(rl.BLACK)
frame_counter = 0
}
rl.BeginDrawing()
dt := rl.GetFrameTime()
if bolt_life <= 0 && rl.GetRandomValue(0, 100) > 98 {
bolt_x = f32(rl.GetRandomValue(0, 1980))
bolt_life = 1.0
}
if bolt_life > 0 {
bolt_life -= dt * 5.0 // Adjust 3.0 to change how fast it vanishes
}
rl.DrawRectangleRec(atmosphere.rect, atmosphere.color)
draw_bolt(bolt_x, bolt_life)
large_chaos_strobe(player)
chaos_strip()
rl.DrawRectangleRec(atmosphere.rect, rl.Fade(rl.BLACK, 0.2))
rl.DrawFPS(30,30)
rl.EndDrawing()
if rl.IsKeyPressed(.ONE){
rl.TakeScreenshot("screenshot.png")
}
}
}

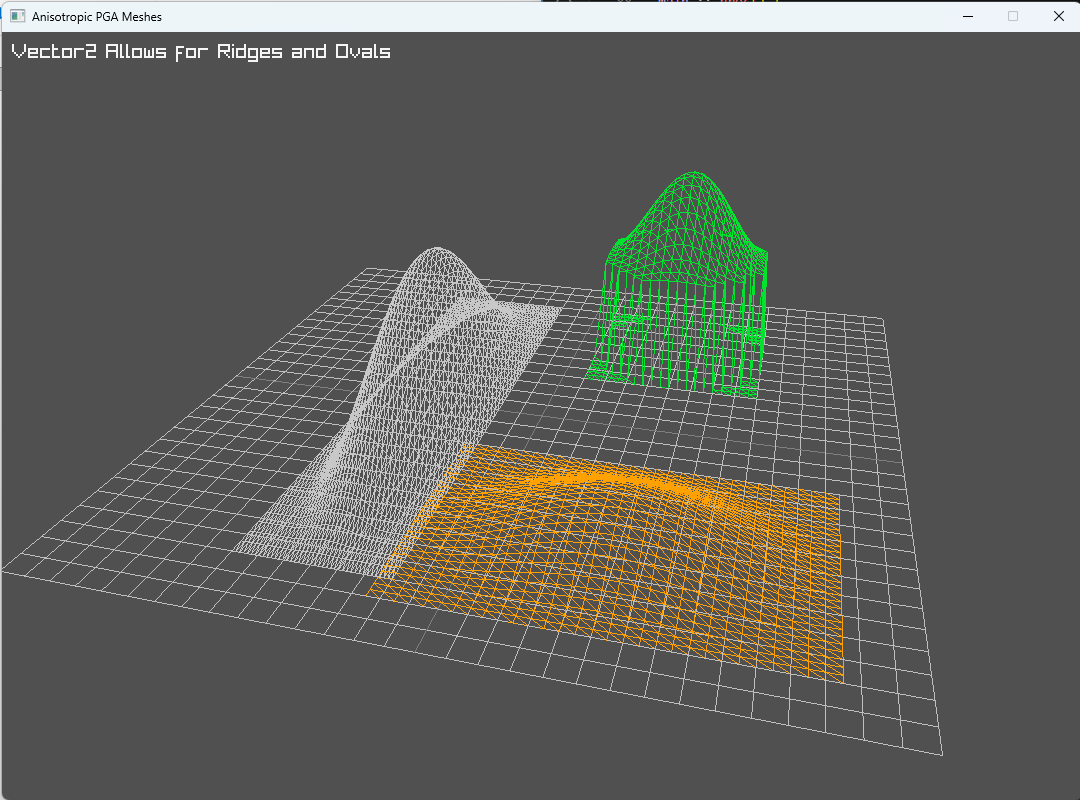

package main
import "core:math"
import rl "vendor:raylib"
GeoObject :: struct {
mesh: rl.Mesh,
model: rl.Model,
position: rl.Vector3,
intensity: f32,
size: rl.Vector2,
}
CreateRidge :: proc(pos: rl.Vector3, size: rl.Vector2, peakHeight: f32, resolution: i32) -> GeoObject {
obj: GeoObject
obj.position = pos
obj.intensity = peakHeight
obj.size = size
vCount := (resolution + 1) * (resolution + 1)
tCount := resolution * resolution * 2
mesh: rl.Mesh
mesh.vertexCount = vCount
mesh.triangleCount = tCount
mesh.vertices = cast([^]f32)rl.MemAlloc(cast(u32)(vCount * 3 * size_of(f32)))
mesh.indices = cast([^]u16)rl.MemAlloc(cast(u32)(tCount * 3 * size_of(u16)))
spacingX := size.x / cast(f32)resolution
spacingZ := size.y / cast(f32)resolution
radiusX := size.x / 2.0
radiusZ := size.y / 2.0
for z in 0..=resolution {
for x in 0..=resolution {
i := z * (resolution + 1) + x
localX := (cast(f32)x * spacingX) - radiusX
localZ := (cast(f32)z * spacingZ) - radiusZ
normX := localX / radiusX
normZ := localZ / radiusZ
normalizedDist := math.sqrt(normX * normX + normZ * normZ)
targetY := -pos.y
if normalizedDist < 1.0 {
targetY = peakHeight * (0.5 * (1.0 + math.cos(normalizedDist * math.PI)))
}
mesh.vertices[i * 3 + 0] = localX
mesh.vertices[i * 3 + 1] = targetY
mesh.vertices[i * 3 + 2] = localZ
}
}
k: i32 = 0
for z in 0..<resolution { // you will have to change the "<"" to "<"
for x in 0..<resolution {
tl := z * (resolution + 1) + x
tr := tl + 1
bl := (z + 1) * (resolution + 1) + x
br := bl + 1
mesh.indices[k] = cast(u16)tl; k += 1
mesh.indices[k] = cast(u16)bl; k += 1
mesh.indices[k] = cast(u16)tr; k += 1
mesh.indices[k] = cast(u16)tr; k += 1
mesh.indices[k] = cast(u16)bl; k += 1
mesh.indices[k] = cast(u16)br; k += 1
}
}
rl.UploadMesh(&mesh, false)
obj.mesh = mesh
obj.model = rl.LoadModelFromMesh(mesh)
return obj
}
UnloadGeoObject :: proc(obj: ^GeoObject) {
rl.UnloadModel(obj.model)
}
main :: proc() {
rl.InitWindow(1080, 768, "Anisotropic PGA Meshes")
defer rl.CloseWindow()
camera := rl.Camera3D {
position = { 25.0, 20.0, 25.0 },
target = { 0.0, 0.0, 0.0 },
up = { 0.0, 1.0, 0.0 },
fovy = 45.0,
projection = .PERSPECTIVE,
}
ridge := CreateRidge({0.0, 0.0, -5.0}, {24.0, 6.0}, 7.0, 40)
defer UnloadGeoObject(&ridge)
hill := CreateRidge({8.0, 5.0, 5.0}, {8.0, 8.0}, 4.0, 20)
defer UnloadGeoObject(&hill)
mound := CreateRidge({-8.0, 0.0, 5.0}, {10.0, 15.0}, 2.0, 30)
defer UnloadGeoObject(&mound)
rl.SetTargetFPS(60)
for !rl.WindowShouldClose() {
rl.UpdateCamera(&camera, .ORBITAL)
rl.BeginDrawing()
rl.ClearBackground(rl.DARKGRAY)
rl.BeginMode3D(camera)
rl.DrawGrid(30, 1.0)
rl.DrawModelWires(ridge.model, ridge.position, 1.0, rl.LIGHTGRAY)
rl.DrawModelWires(hill.model, hill.position, 1.0, rl.GREEN)
rl.DrawModelWires(mound.model, mound.position, 1.0, rl.ORANGE)
rl.EndMode3D()
rl.DrawText("Vector2 Allows for Ridges and Ovals", 10, 10, 20, rl.RAYWHITE)
rl.EndDrawing()
}
}
